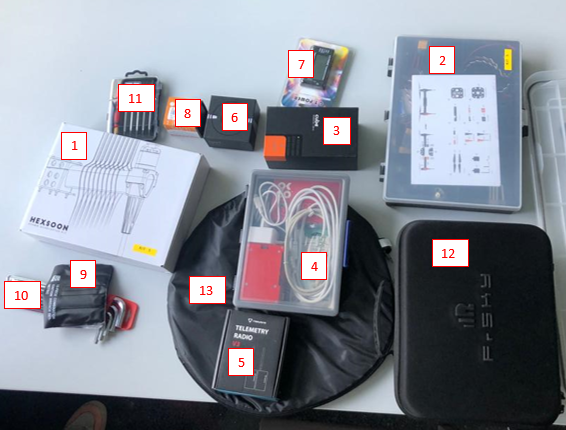

In this activity, you will see all the elements provided in order to assemble the drone and be able to fly it. There are a total of 13 elements:

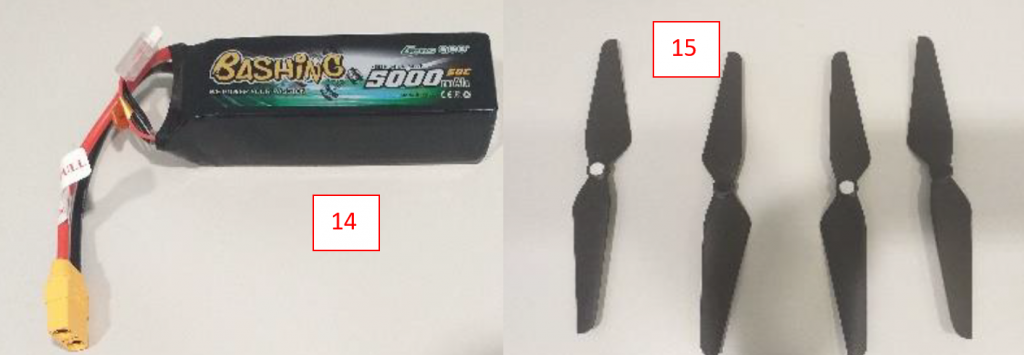

In addition, there are two elements, battery and propellers, that for safety reasons, were only delivered at the time of flight tests or, in the case of the batery, for the calibrations:
Now, in the next table, we are going to see a resume table describing each elements seen in the previous pictures, with a brief description and where they can be purchased and the approximately prices:
| NUMBER | NAME/LINK | FUNCTIONALITY | PRICE [€] |
| 1 & 2 & 15 | Hexsoon EDU 450 Frame and propulsion system | Propellers (4PCS) Motors (4PCS) Motor Mount set (4SETS) Arm Mount set(4SETS) Aerofoil Arm (4PCS) Landing Gear Power Distributer ESC (4PCS) | 299.90 |
| 3 | Pixhawk 2.1 Orange Cube | The controller is designed to be used with a domain-specific carrier board in order to reduce the wiring, improve reliability, and ease of assembly. | 306.90 |
| 4 | Raspberry Pi 4 Model B 8 GB | With this computer is possible to connect the flight controller and send commands from the computer to the drone. | 98.99 |
| 5 | Holybro Telemetry Radio 433 MHz 500mW | Open source radio platform that allows ranges of more than 300m (few kilometres with patch antenna on the ground) Open source firmware allows to work with MAVLink packets and to be integrated with the Mission Planner, Copter,Rover, and Plane. | 48.52 |
| 6 | GPS GNSS Cube Pilot Here 3 | GNSS (Global Navigation Satellite System) receiver with RTK (Real Time Kinematics) and compass. | 153.55 |
| 7 | Battery capacity controller | Can be used to check the battery voltage of Lithium batteries including Lipo, LiFe, Li-Ion, as well as NiMH and NiCd batteries. | 16.04 |
| 8 | Optical sensor | The LW20/C is a small form factor, 100 meter range, laser sensor in an IP67 enclosure suitable for small drones and self-driving vehicles, where weight, size and power consumption are critical | 279. 15 |
| 9 | Wrench kit | 10-piece RS PRO fixed wrenches set, Carbon Steel | 20.70 |
| 10 | Allen wrench kit | Set Hexagonal wrench, RS PRO, 1.27 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 7 mm, 8mm | 14.75 |
| 11 | Screwdriver kit | RS PRO screwdriver set, 7 pieces, Interchangeable | 14.63 |
| 12 | FrSky Taranis X9D PLUS SE 2019 ACCESS 2.4G | FrSky has frequency hopping ACCST technology and the entire 2.4GHz range. | 279.99 |
| 13 | Landing path | Drone Landing Pad | 12.99 |
| 14 | Battery | Litium Polymer battery Bashing. 5000mAh, 50C,4S1P. | 52.99 |
All together, it makes a total sum of 1599.1€. It may seem a relatively high value, however, in the Drone sector, a Drone with normal characteristics of the DJI model Mavic 2 brand (Source: https://store.dji.com/es/product/mavic-2) has a value of about € 2000. Therefore, it can be considered that it is not a relatively expensive Drone.
